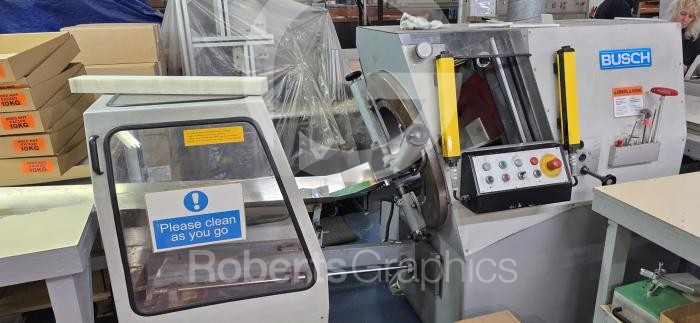

2006 BUSCH BLS

Powerful and robust ram punch die cutting machine for all types of material where higher volumes are required. Used for cutting contours of large sized labels, loyalty cards etc. The highly desirable BLS has a maximum die cut size of 230 mm x 320 mm or a diameter of 260 mm for circular products.

Max die cut size 230 mm x 320 mm
Min die cut size 20 mm x 20 mm
Max stack height 190 mm
Die cutting pressure 5,700 kgs
Max die cutting strokes 16 per min

Complete with safety light barrier, adjustable clamping arms, delivery tray.
