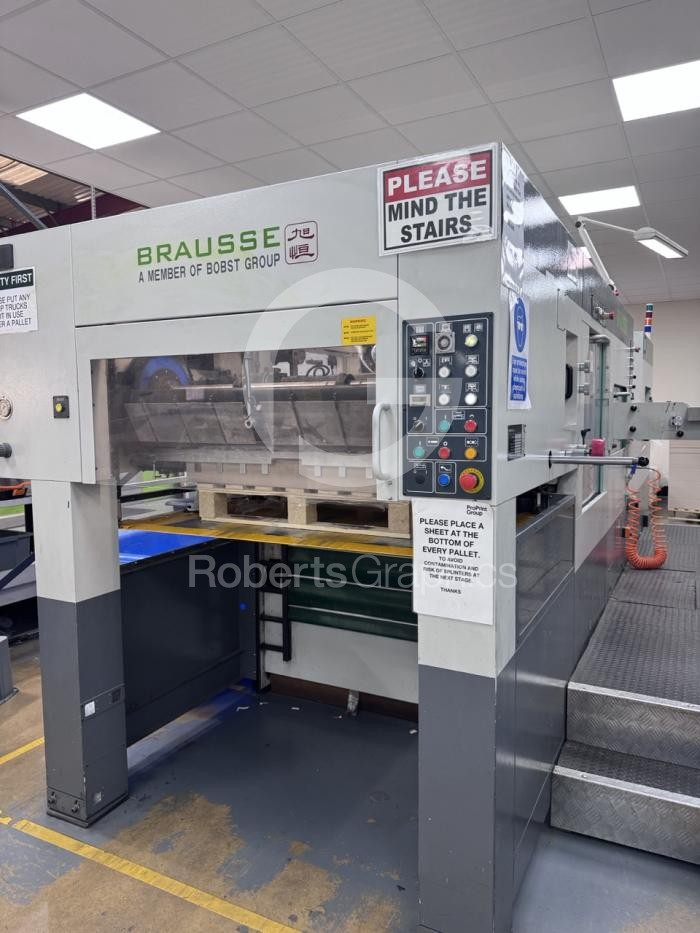

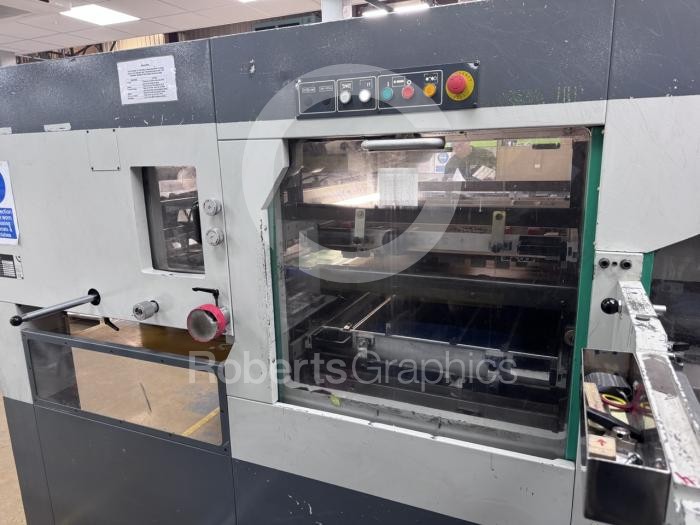

Fully automatic die cutting and creasing machine with inline stripping
Max sheet size : 1060 x 750 mm
Min sheet size : 400 x 360 mm
Max impression strength : 300 tons
Max mechanical speed : 8000 cph
Min gripper edge : 9.5 mm
Material range : min paper 80-90 gsm, cartonboard up to 2000 gsm
Complete with :
Non stop feeder with automatic pile lift
Left and right hand side register lays
Pneumatic clutch and brake mechanism
High precision alloy gripper bars
Triple action stripping station
Automatic delivery with non stop curtain
Thin plate system
Centerline
Quicklock
