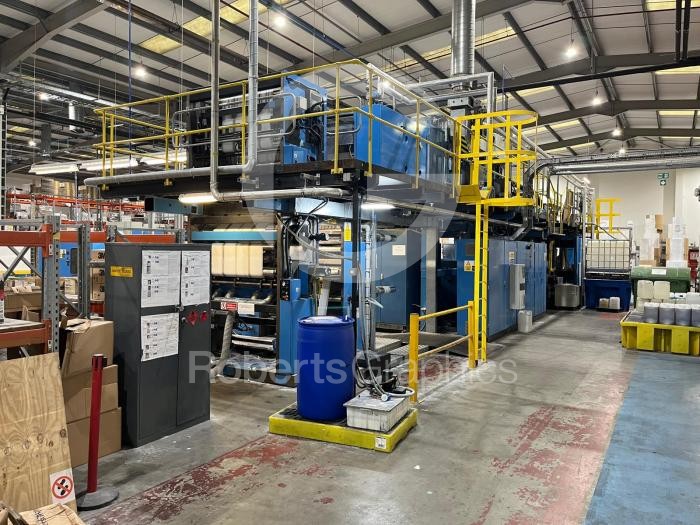

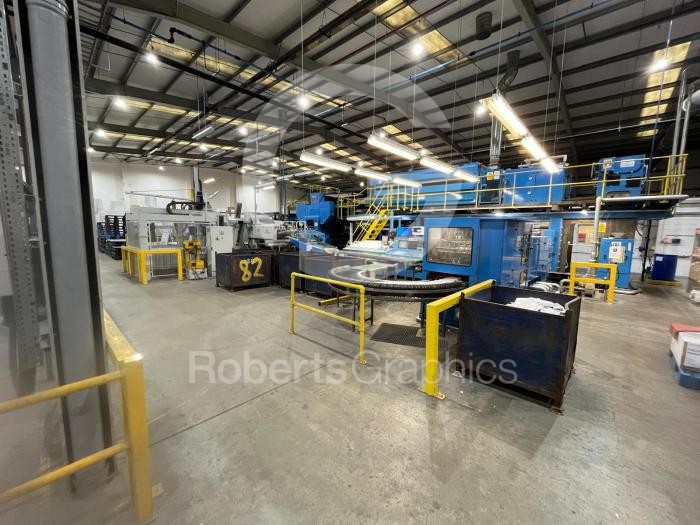

Specifically designed web offset press to print and fold signatures foe books, diaries and documentation work in single and two colour work. The Timson Zero Make Ready (ZMR) press enable operators to easily replace the printing plates while the press continues to produce product at full production speed.
Printing cylinder ircumference : 50.5`` - 1282.7mm
Max web width : 53`` - 1346mm
Max ribbon width : 20`` - 508mm
Min ribbon width : 8`` - 203mm
Max number of ribbons : 4
Max web speed : 1300 ft/min - 396 m/min
Complete with :

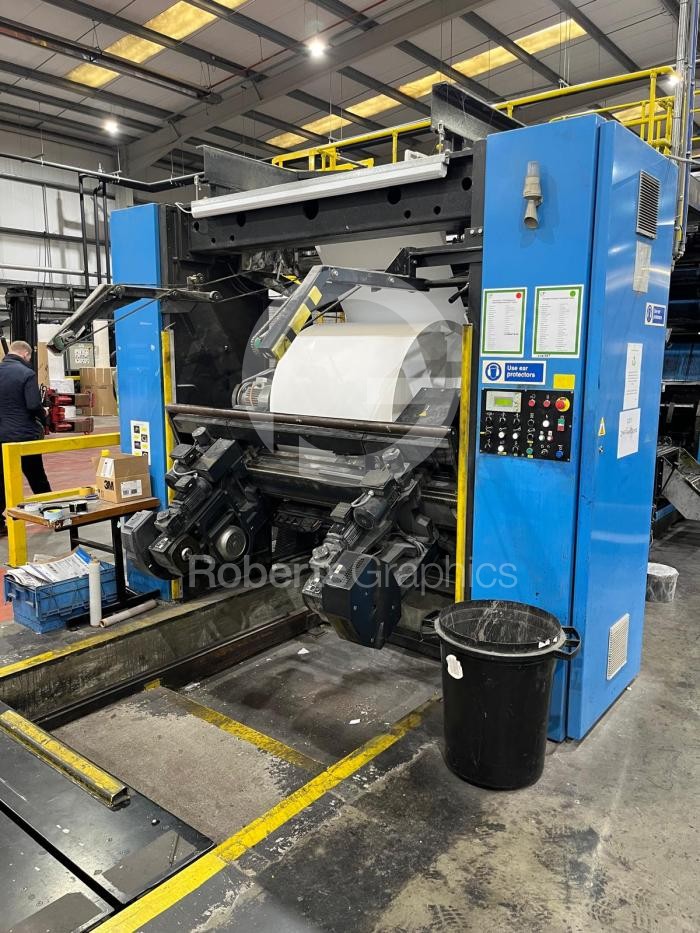

- MegTec DLC 1600 automatic reel stand with integrated infeed and E&L web guide system

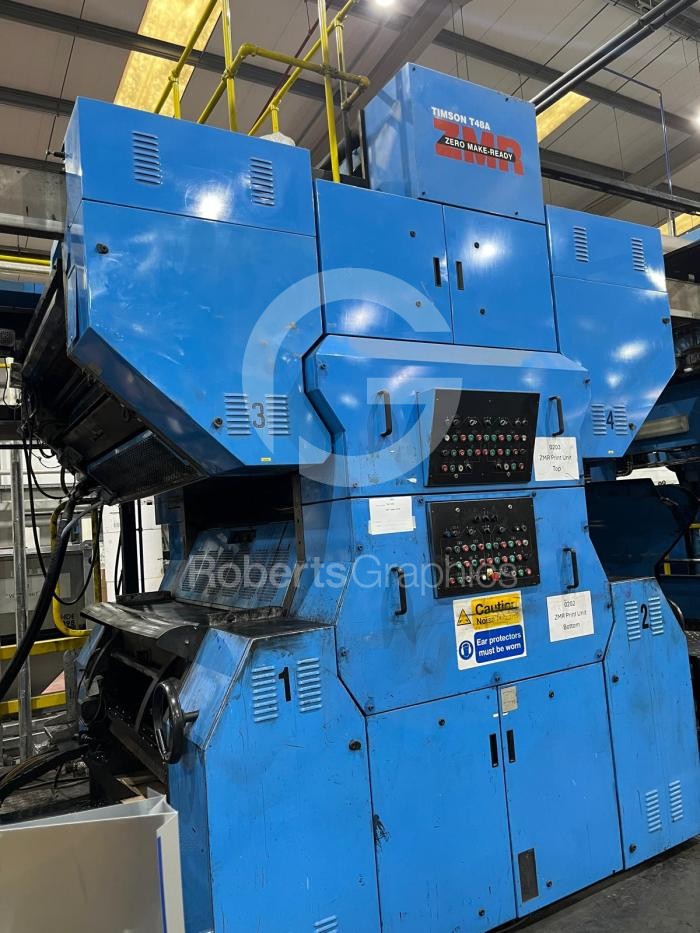

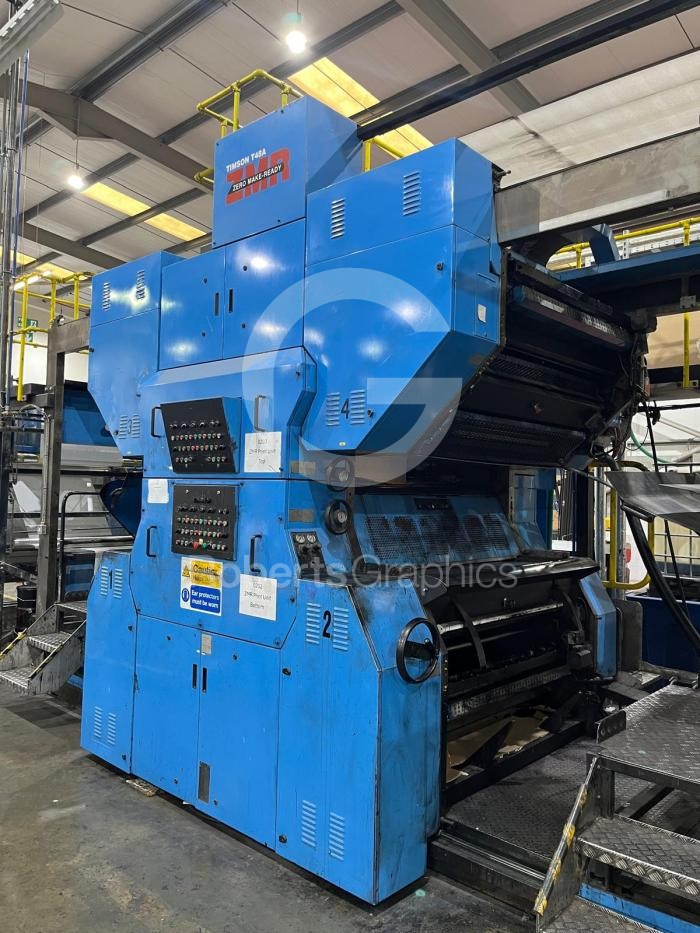

- ZMR print unit - run in 2+2 colour mode or 1+1 with make ready
- Ink agitators
- Mongraf remote inking
- Technotrans auto ink duct filling
- Technotrans spray damping system
- Air bar web transfer unit above print unit

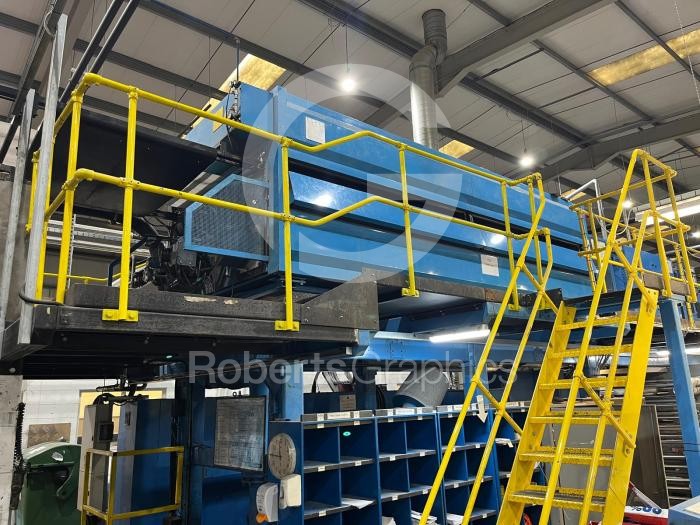

- MegTec Gas oven dryer

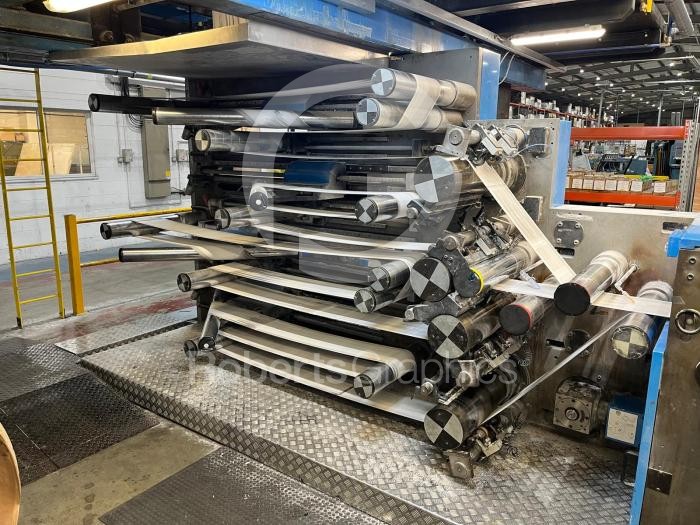

- Timson 4 roll chill stand with E&L web guide system
- 2 x silicone applicators
- Slitting unit for 4 x ribbons
- Ribbon divert unit with air bars
- Central driven perf unit in folder
- M7X/4 Folder with two deliveries for both lang and short grain product
- Quadtech Autotron print to cut and ribbon registration + plate back up registration when running in two colour
- Conveyor delivery
- Jog and pressing unit

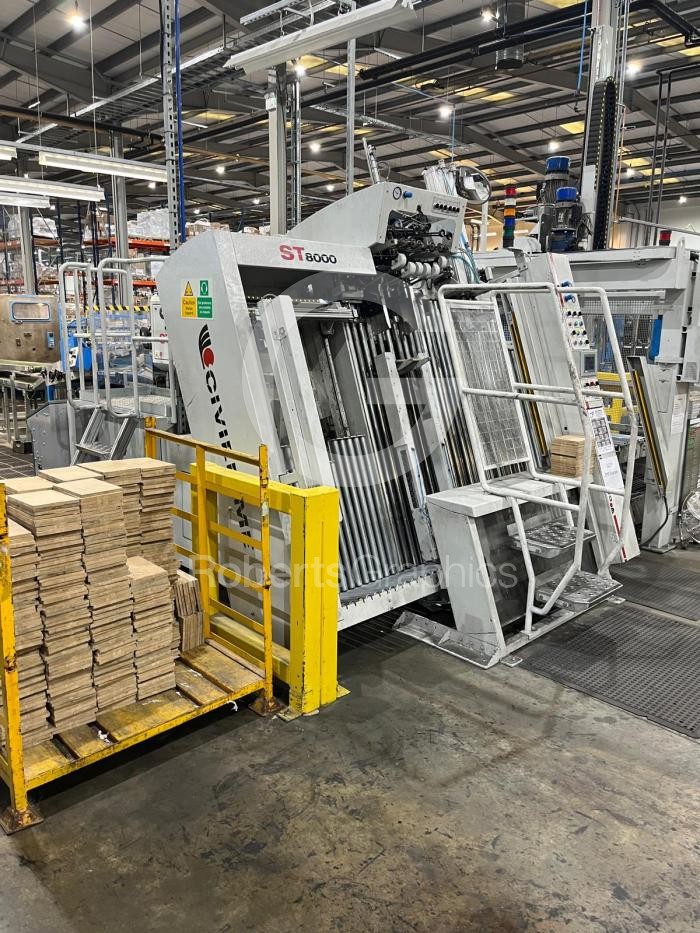

- Civiemme ST8000 stacker and strapper
- Civiemme ST220 palletiser
