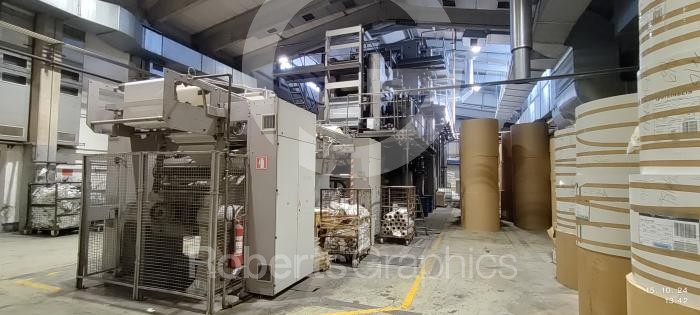

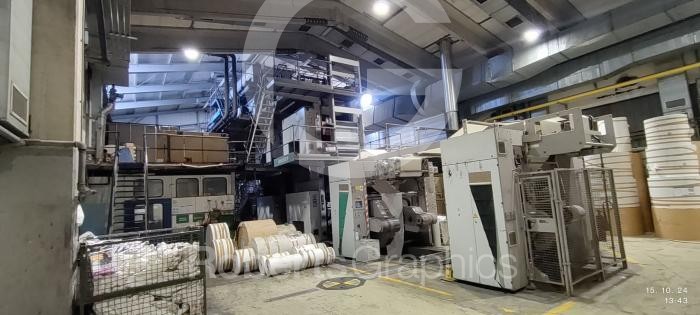

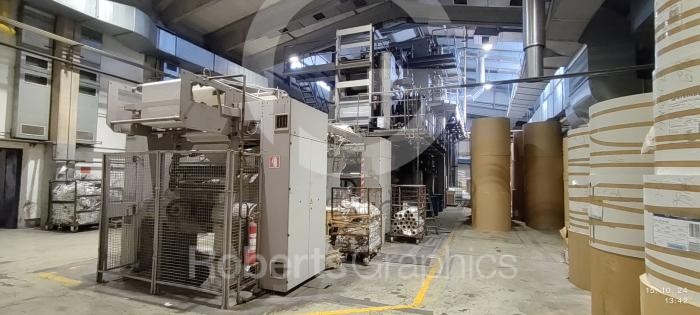

2000 MANROLAND UNISET 70

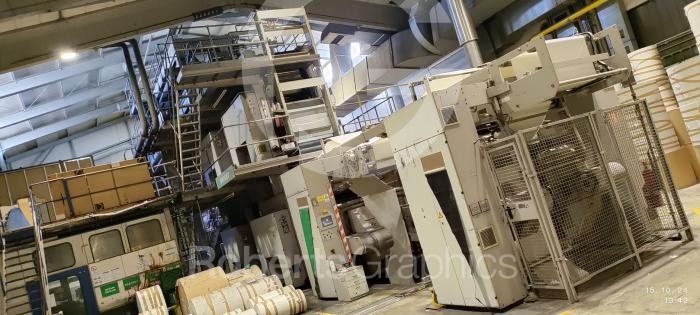

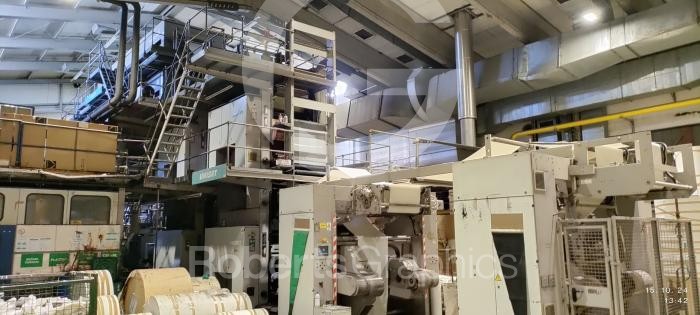

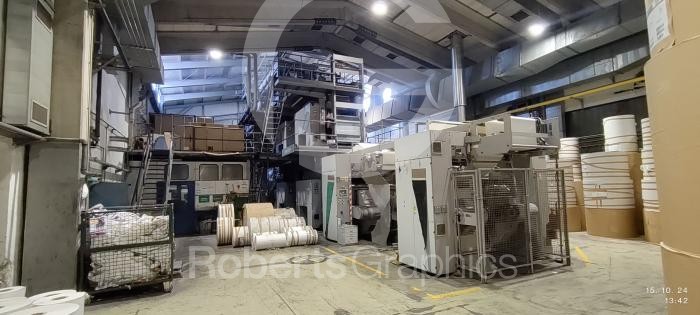

- 2 x MAN CD13 Autopasters
- 2 X Manroland Infeeds
- 2 x Erhardt & Leimer Web Guides
- 2 x chain web guide ( automatic paper infeed from reelstand to turner bars)

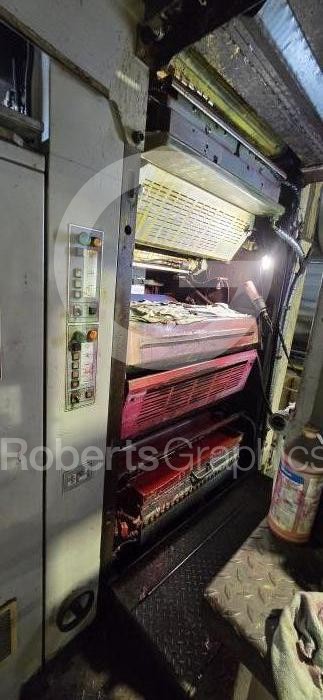

- 2 x 4/4printing towers with system for automatic blanket washing OXY DRY

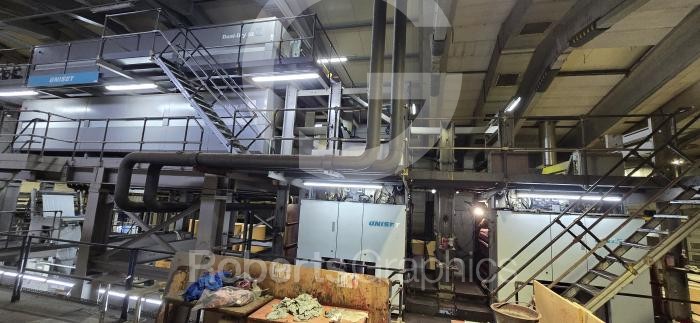

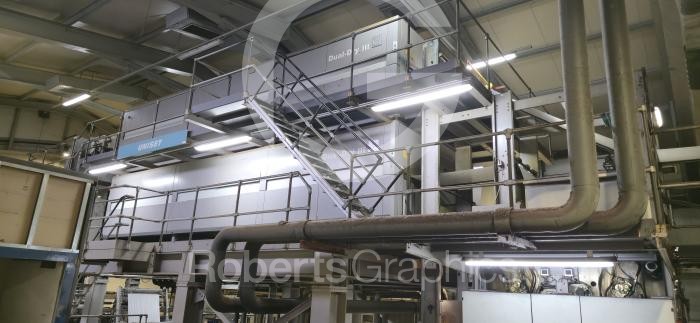

- 2 x Megtec Dual Dry III Ovens
- 1 x Megtec After-Burner oxidizer
- 2 x Chill Roll Stands
- 2 x Weko silicone ApplicatorS
- 4 x Turner bars with 180° bay window option
- Erhardt & Leimer Web Guides
- 2 x Manroland 2:3:3 Folders with 1/4 Fold
- 2 x PLANATOL Automatic glue applicators
- Tolerans stitching unit on one folder (for stitching A3 products)
- Baldwin Refrigerated Water Circulation for the Dampening System
- System for controlling the temperature of all heat sensitive processes (without the chiller)
- Fully automatic video-controlled plate bending machine Nela
- 2 x Gammerler Conveyor Belt System
- 2 x Gammerler 3 Knife Rotary Trimming Lines
- 2 x Inlog Compensating stackers
- System for automatic color register Grafikontrol
- System for automatic cut-off register Grafikontrol
- CIP 3 system for Presetting of ink values

Impression area: 610/305mm high by 950mm wide
Max paper role width: 690mm
Min paper role width: 450mm
Max paper grammage: 90g/m2
Min paper grammage: 40g/m2
