2016 STANFORD ACCRAPLY SHRINK SLEEVE MAKING LINES

ACCRAPLY ---- ACCRASEAM | DM12 INSPECTOR | SHRINKMASTER S2000 STEAM TUNNEL

We have the pleasure of offering a selection of equipment for the production, testing and application of Shrink sleeves.

PRODUCTION

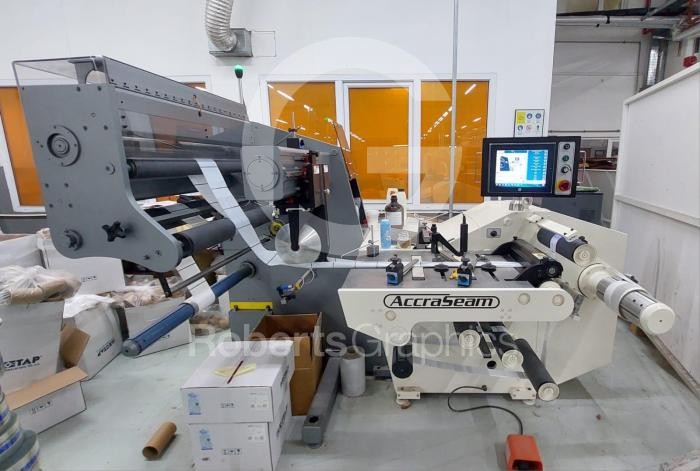

STANFORD ACCRAPLY ACCRASEAM
Servo Controlled Shrink Sleeve Seamer
(PVC, PET, PETG, OPS, PLA Films)
Max Speed 600mpm
Min Layflat Width: 25mm
(25-50mm Adjustable Kit)
Max Layflat Width: 305mm
Servo Controlled Solvent Dispenser
Solvent Cleaning System
Touch Screen Control
Ultrasonic Sleeve-Width Measuring Device

DEFECT DETECTION

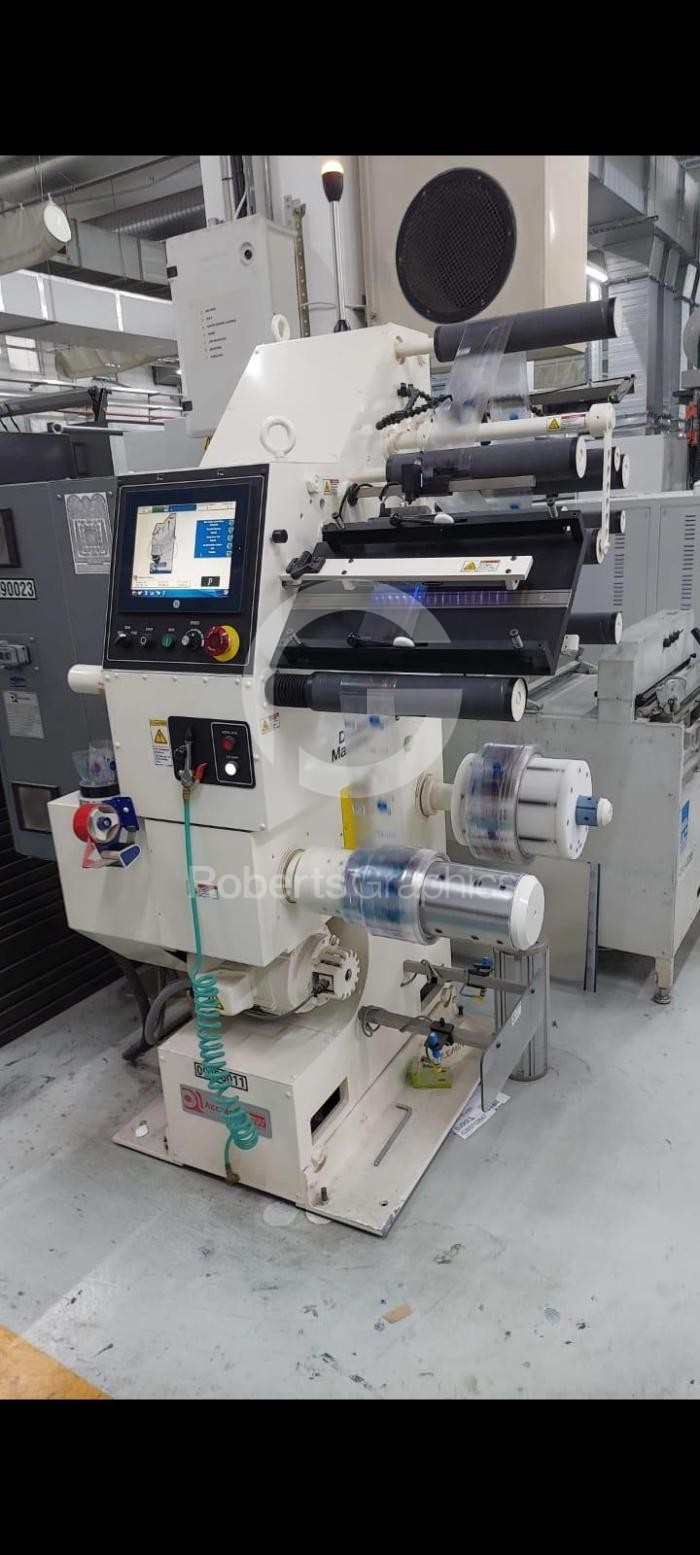

STANFORD ACCRAPLY DM12 SHRINK SLEEVE INSPECTOR
Compact Cantilevered Design
Return to Defect Button
Touchscreen Control
UV Detection
Bubble Detection
6" Core Sleeve
Minimum Width: 50mm
Maximum Width: 305mm
Maximum Speed: 500 mpm

APPLICATION

ACCRAPLY GRAHAM & SLEEVIT SHRINKMASTER S2000 STEAM TUNNEL
Complete with STEAM GENERATOR and SLEEVE LABEL APPLICATOR
Shrink Sleeve Cut and Applicator
Conveyor

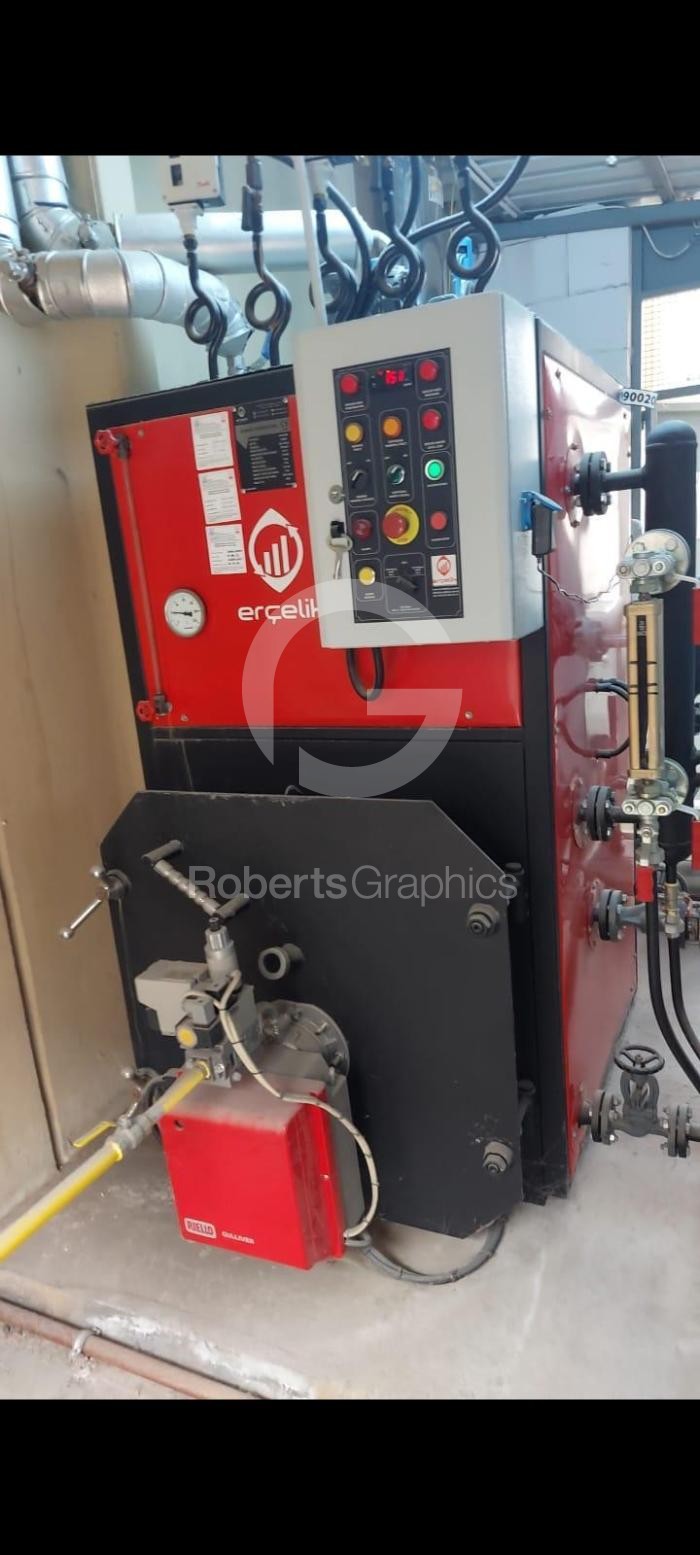

Steam Generator
Dry Steam Tunnel (with 12 x Heating Areas in 2 Zones)
Can Be Used in Series for Higher Speed Applications
