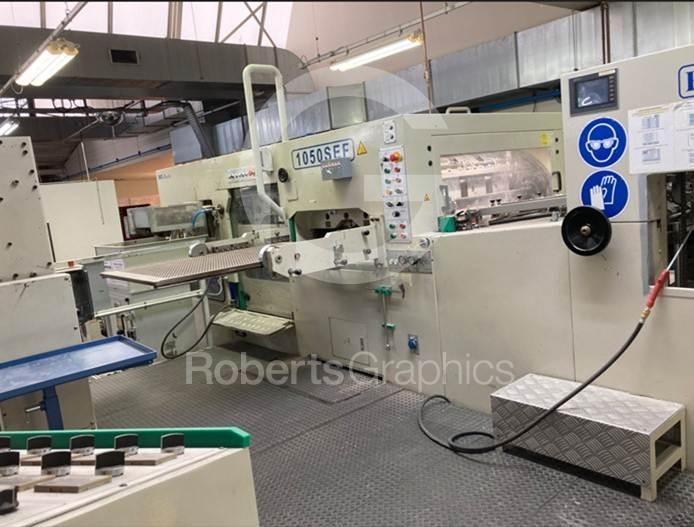

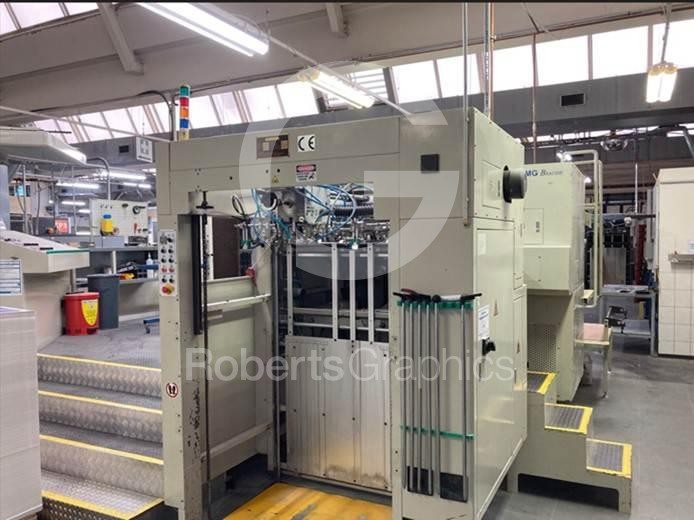

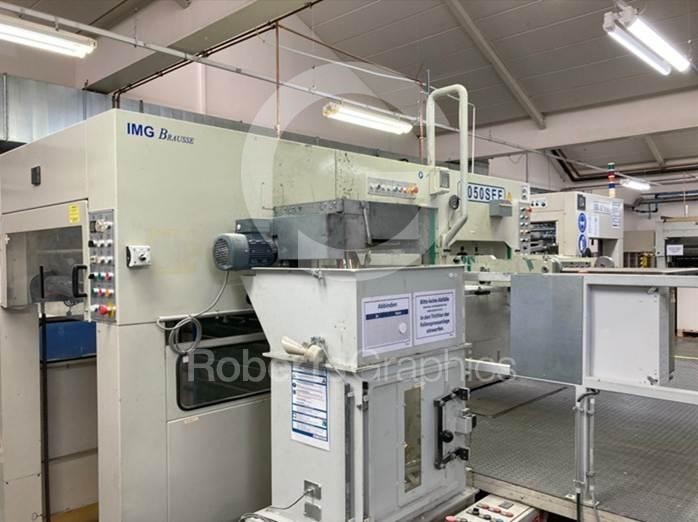

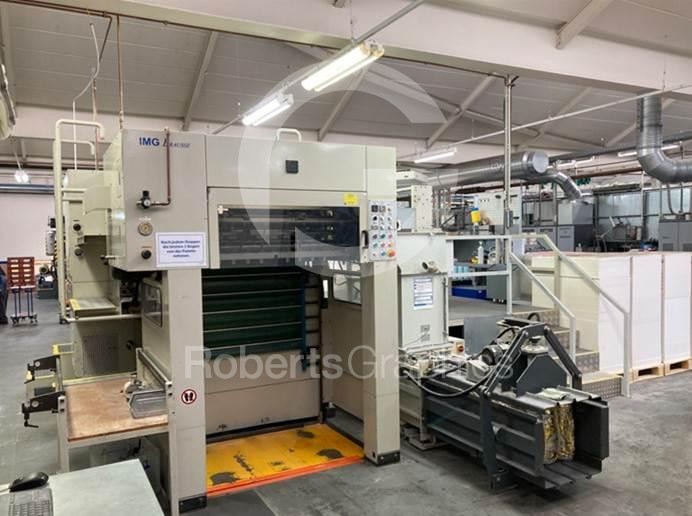

Hot Foil Stamping Machine
Max paper size: 1050 x 750mm
Min paper size: 400 x 360mm
Max Cutting Size: 1040 x 730mm
Min Gripper Margin: 9.5 mm
Inner chase size: 1145 x 755mm
Face Plate Size: 1080 x 736mm
Stock Range: 80 - 600 GSM
Max Cutting Pressure: 300 tons
Max Speed: 7,500 cycles per hour
Complete with :
Non stop feeder
LCD Screen Display Control System
Hot Foil Stamping and Embossing Unit:
3 X Individually programmable longitudinal foil pulls

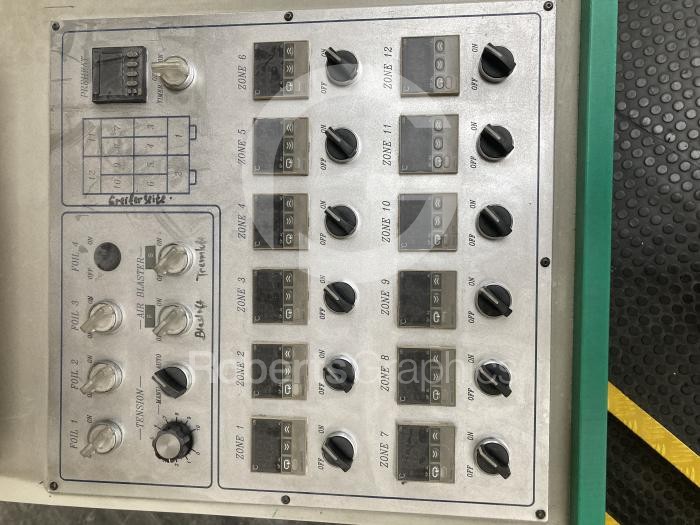

12 Zone heating base complete with Honey Comb Base and Individual Temperature Controls for each zone.
Max Width Foil: 1020mm (41”)
Max Stamping Width: 1020mm (41”)
Max Stamping Depth: 730mm (28”)
Max Foil Pull: 730mm (28”)
Foil supply bars max capacity: 8” roll diameter
Rewind Unit Max Capacity: 16” roll diameter
2 x Honeycomb chases
Non stop delivery
