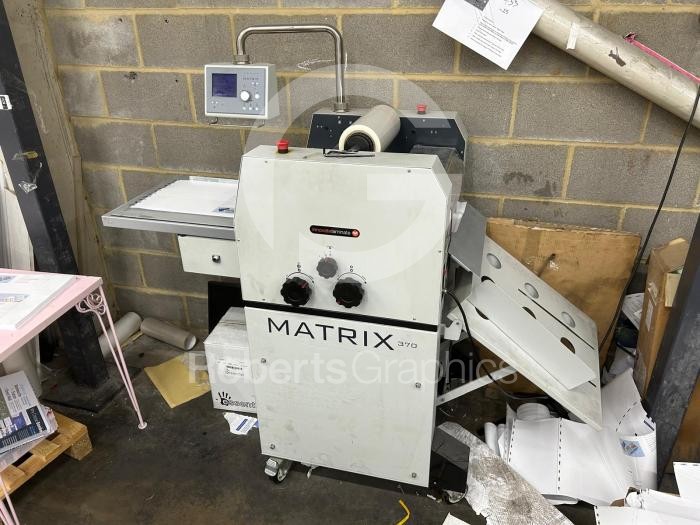

2015 MATRIX LAMINATOR MX-370

Ref no: 8116

2015 MATRIX LAMINATOR MX-370

Ref no: 8116

Machine Features

  • Category: Finishing
  • Manufacturer: MATRIX LAMINATOR
  • Model: MX-370

The Matrix MX-370 SRA3 single-sided laminating,
Semi-automatic feed,
Anti-curl technology,
Automatic separator

Specifications:
Max. Mechanical Speed (m/ft/min) 10m/33ft
Max. Lamination Film Width (mm/inches) 340mm/13”
Minimum Paper Thickness (gsm/lbs) 135gsm/90lbs
Maximum Sheet Width (mm/inches) 420mm/17”
Warm-up Time (mins) 10
Temperature Range (°C/°F) 0-140°C/32-284°F
Power Supply (V) 220/240
Power Supply Required (Amps) 13
Power Consumption (W) 2200
Overall Dimensions (mm/inches) 800x1800x1400mm/31x71x55”
Gross Machine Weight (Kg/lbs) 190Kg/419lbs
